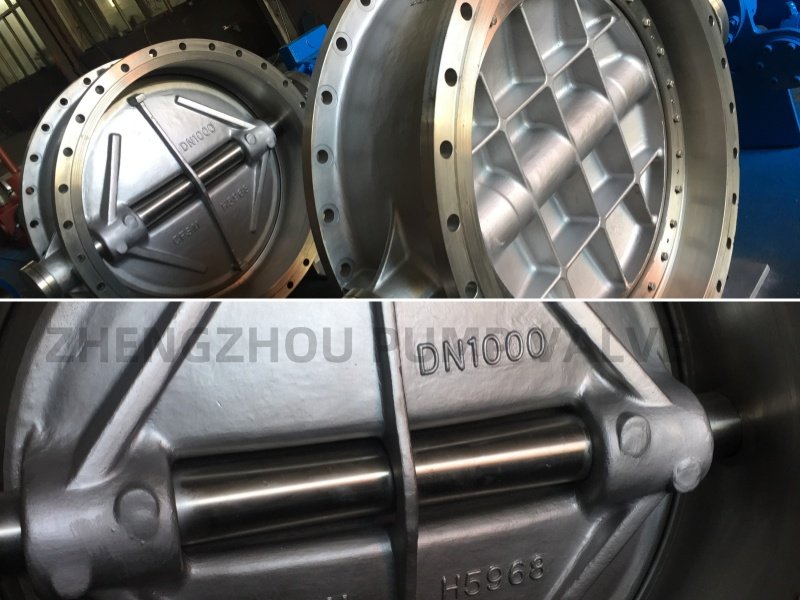

Triple offset flanged butterfly valve
DN 80mm~1200mm
PN ASME Class 150, 300 and 600
Pressure test seat 1.1*PN
shell 1.5*PN
Medium temperature ≤425℃
medium Steam, gas etc.
Body Material Carbon Steel, Stainless Steel & Other Materials
Connection Wafer, Lug, Flange, butt weld

Triple offset butterfly valves are designed in accordance with API 609 with features of bi-directional, lightweight ,cost-effective and low torque.

In many industries, triple offset butterfly valve can be used not only on-off but also regulating the flow , thus it’s replacing traditional valve.

Based on customers requirement, valves in high pressure class, large size and other material also offered. Optional stellited seat.
