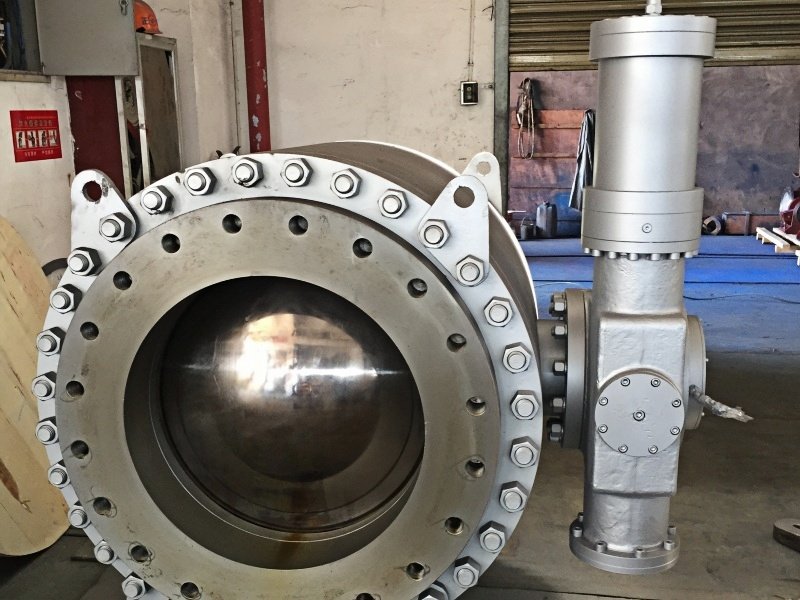

high pressure hydraulic ball valve

Size: DN200-DN2000
Design pressures:25 bar to 100 bar
Soft or metallic seals
Hydraulically operated seal ring
Double eccentric
with maintenance seal
Limit Switch for close and open position

High pressure hydraulic Power Station Spherical Valve (Also Named Hydraulic Power Station Ball Valve) is one of advanced control equipment which installed at the inlet of the turbine, and it’s widely used as a exhaust valve in irrigation works, power stations and various pump stations, replacing non-return valve and gate valve.

Part C I P R
Body WCB,Q235,Q345 ZG1Cr5Mo,WC6,WC9 CF8(304) CF8M(316)
disc WCB,Q235,Q345 ZG1Cr5Mo,WC6,WC9 CF8(304) CF8M(316)
stem 20Cr13 25Cr2Mo1V 06Cr19Ni10 06Cr17Ni12Mo2
Suitable temperature -29~425 -29~550 -29~600

Note: Other materials are available upon request.

4.Structure

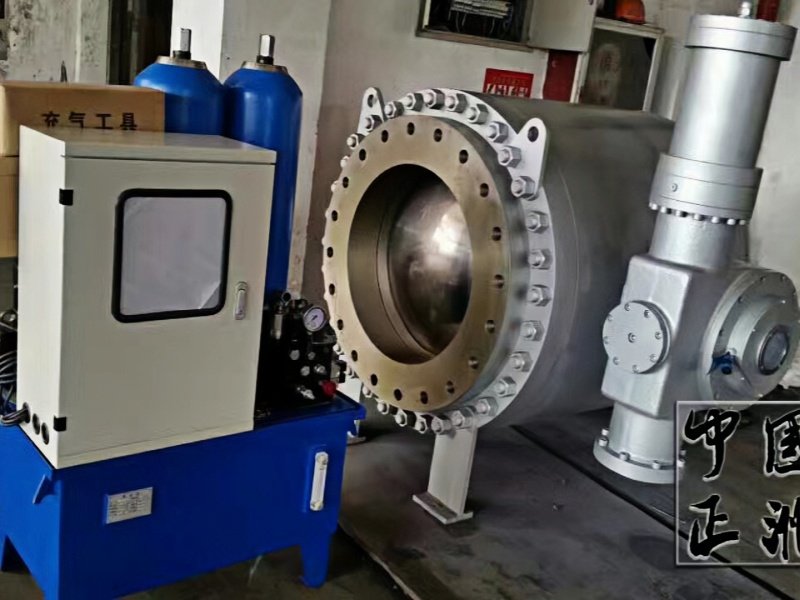

This product is mainly composed of valve body , drive unit, the hydraulic control unit , electric control unit and other components.

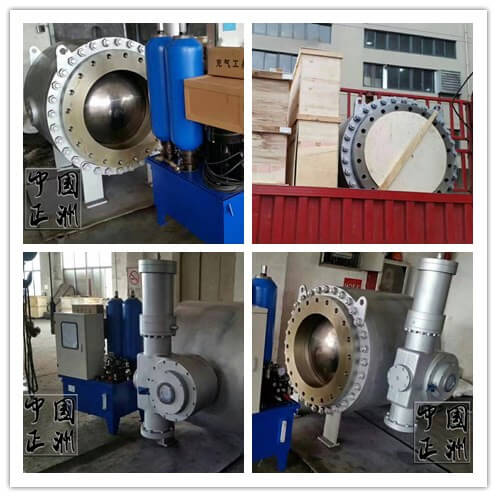

high pressure hydraulic ball valve(2)
